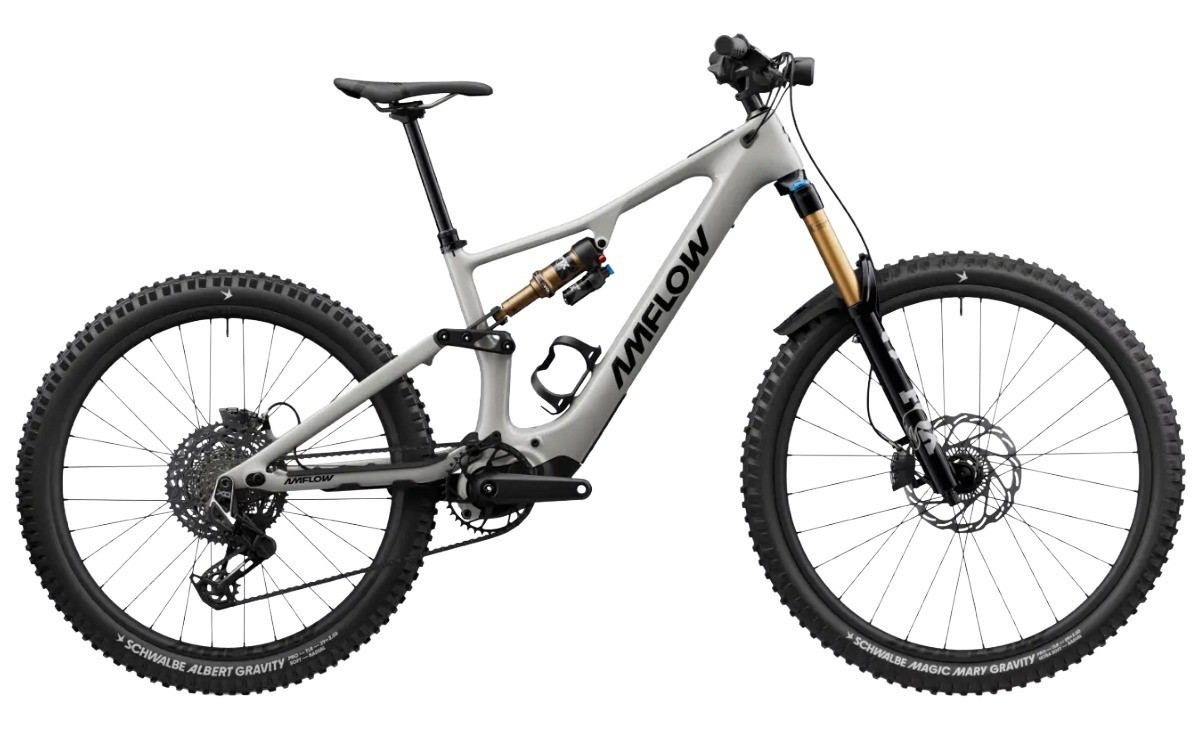

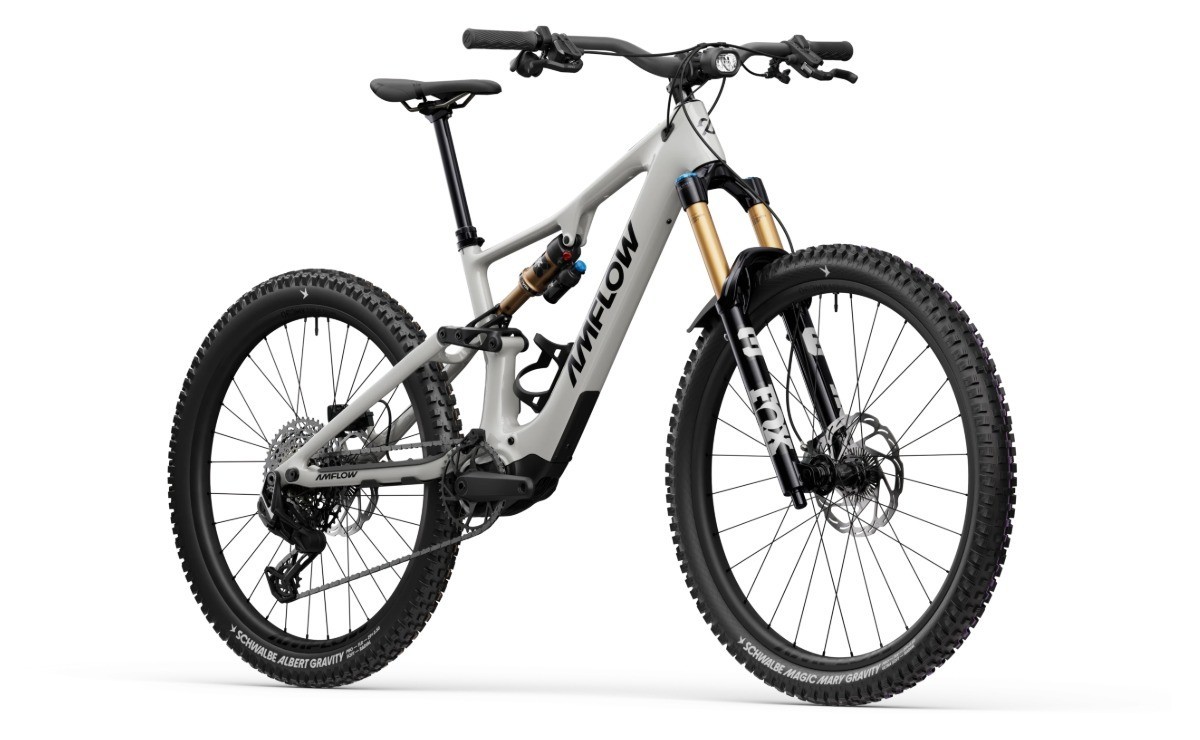

Amflow PX Carbon Pro DJI Avinox M2S full suspension ebike
The Amflow PX Carbon Pro is the absolute ultimate weapon without compromise. If you are looking for a machine that combines the most advanced motor on the market with the best possible components for aggressive riding, you just found it. This "Pro" version offers upgrades in all critical areas: from premium Kashima-coated suspension to top-tier wireless shifting and stiff carbon wheels.
The heart of the bike remains the phenomenal DJI Avinox M2S motor with a crushing peak power of 150 Nm and a nominal output of 130 Nm. The system is powered by a massive integrated 700Wh battery featuring ultra-fast 12A (508W) charging. You have all data under control on the luxurious 2-inch OLED touchscreen embedded in the top tube, supported by wireless controllers.
The biggest leap in the Pro version is the suspension. Up front, the elite FOX 36 Factory fork (160 mm) works its magic with the revolutionary GRIP X2 damper and signature Kashima coating, providing maximum sensitivity and endless tuning options. In the rear, it is complemented by a FOX Float X Factory shock. The premium carbon frame retains the ability to adjust up to 40 different geometry configurations and comes out of the box as an agile mullet (29"/27.5").
Drivetrain operations are handled by the wireless SRAM X0 Eagle Transmission. This T-Type derailleur mounts directly to the rear axle, is extremely durable, and shifts flawlessly even under the full load of the most powerful motor. Furthermore, the bike rolls on exclusive Amflow XMC-30 carbon wheels, which dramatically reduce rotational mass and improve acceleration. Braking is commanded by massive 4-piston Magura Gustav Pro brakes with extra-thick rotors (2.5 mm) for perfect heat dissipation, while traction is secured by top-tier Schwalbe radial tires.
- Motor
- Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
- Battery
- Avinox Integrated Battery: 700Wh
- Frame

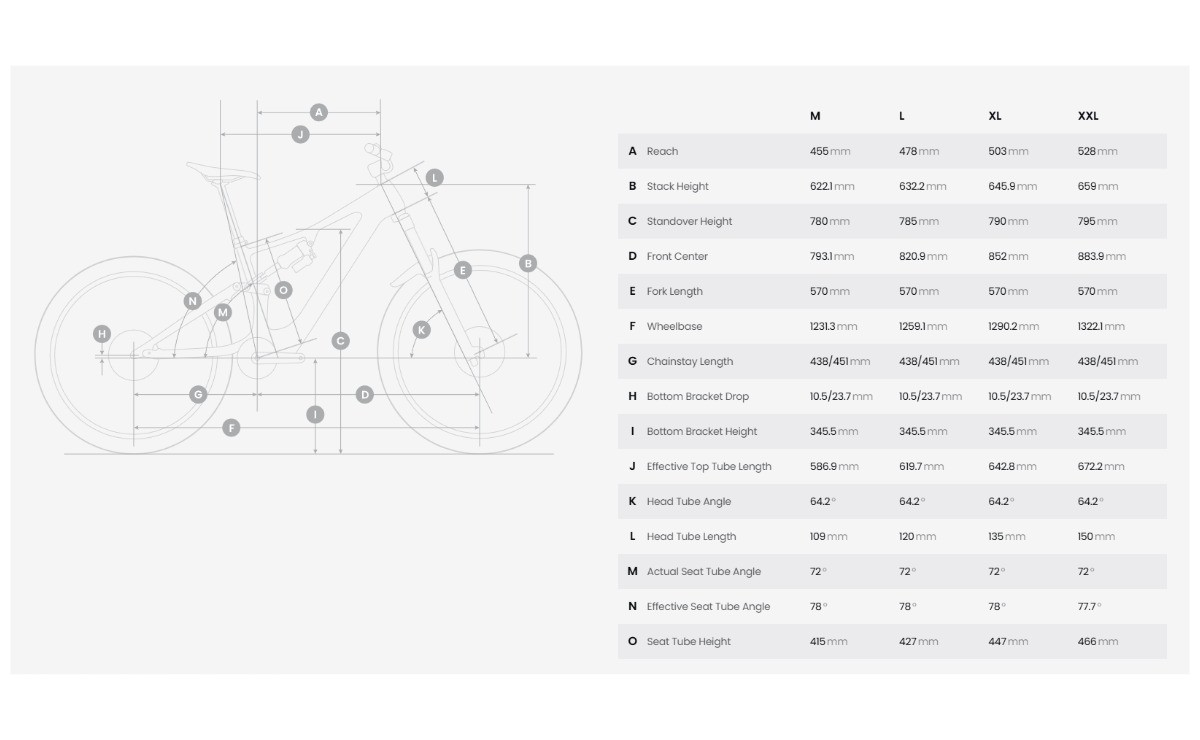

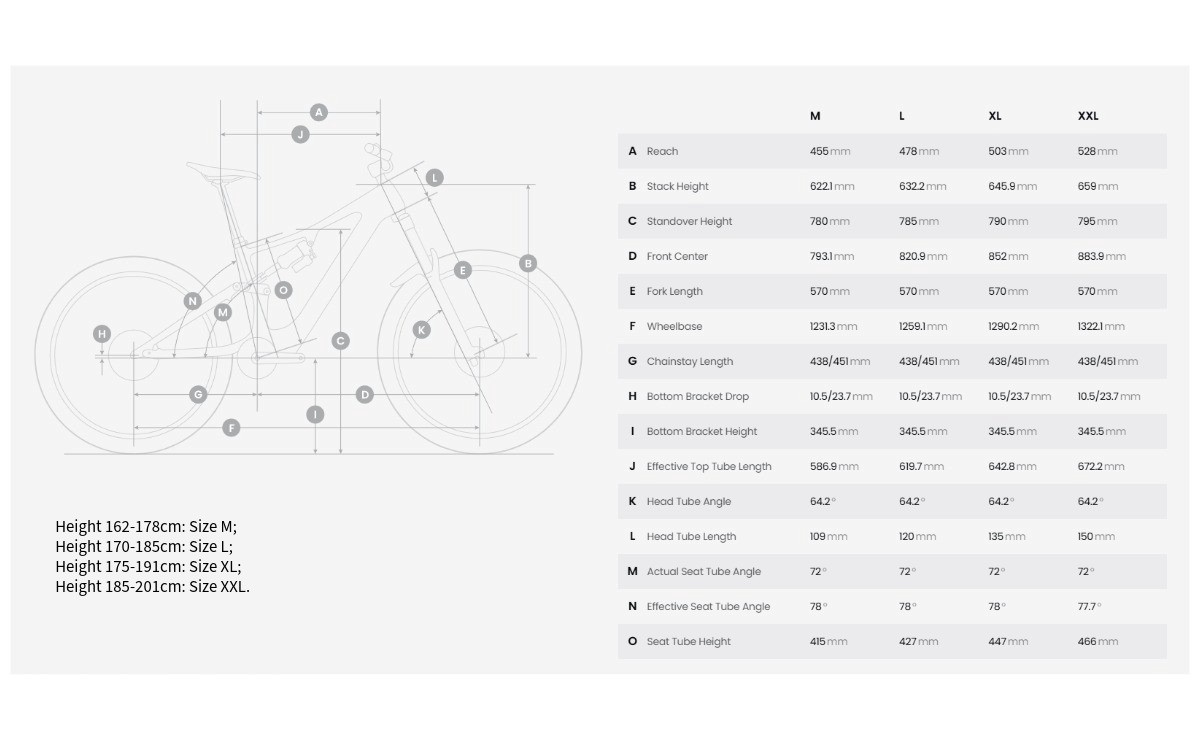

- Amflow PX Carbon Pro Frame, Moonstone Gray, 40 adjustable geometry configurations, Compatible with 27.5″ and 29″ rear wheels
- Fork
- FOX 36 Factory (MY 2027), 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
- Shock
- FOX Float X Factory (MY 2027), 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
- Wheelset
- Amflow XMC-30 Mullet Version
- Tyres
- Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready, Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
- Gear Shifters
- SRAM AXS Pod Rocker Controller
- Brakes
- Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers, Magura Sensor Rotor (203mm, 2.5mm)
- Crankset
- Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) - SRAM Eagle Transmission DM Chainring 38T for Avinox
- Rear Derailleur
- SRAM X0 Eagle Transmission Derailleur
- Seatpost
- Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) M/L Frame: 190mm XL Frame: 210mm XXL Frame: 230mm
- Chain
- SRAM X0 Eagle Transmission Chain
- Cassette
- SRAM XS-1295 Eagle Transmission Cassette 10-52T
- Handlebar
- Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
- Hub
- Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt, Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
- Rim
- Carbon, 29" + 27", 30mm inner width, 28H, tubeless ready
- Spokes
- SAPIM E-Light
- Stem
- Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm
- Grips
- Amflow Enduro Grip 2 Lock-on Grips
- Saddle
- Amflow Mountain Saddle Titanium
- Charger
- Avinox Fast Charger: 12A/508W
