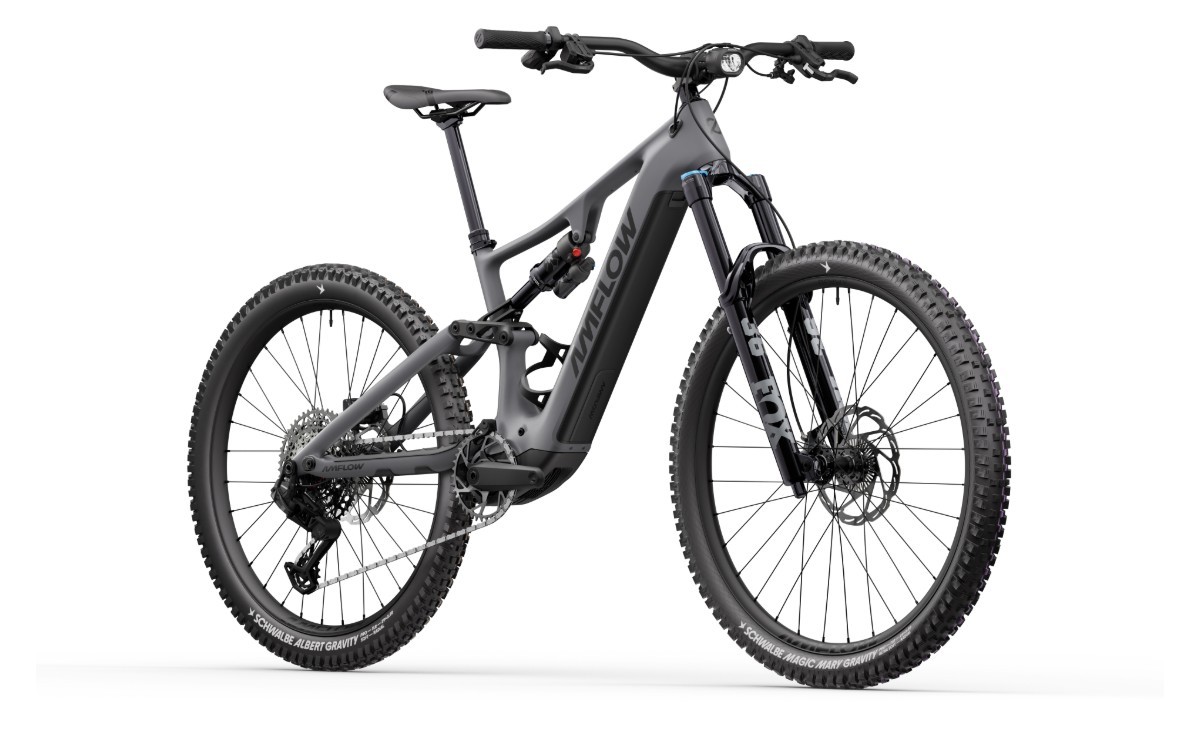

Amflow PR Carbon Pro DJI Avinox M2S full suspension ebike
The Amflow PR Carbon Pro represents the ultimate combination of extreme power and maximum range. While other models in the lineup aim for the lowest possible weight with an integrated battery, the "PR" series is designed for riders who want to spend all day in the saddle without range anxiety. It features a massive removable battery and the most powerful version of the DJI motor.
The heart of this carbon machine is the revolutionary DJI Avinox M2S motor. It features a nominal torque of 130 Nm but peaks at an unbelievable 150 Nm, making it one of the most powerful e-bike motors on the planet. The key advantage of the PR model is its fully removable battery with a massive 800 Wh capacity. You can easily take it out and recharge it off the bike using the included ultra-fast 12A (508W) charger. The system communicates via a premium 2-inch OLED touchscreen and wireless handlebar controllers.
Finished in Basalt Grey, the carbon frame features a geometry adjustment system that offers up to 40 different configurations thanks to adjustable headset cups and a flip-chip. The bike comes in an agile mullet setup (29" front and 27.5" rear). Suspension duties are confidently handled by a FOX 36 Performance fork with 160 mm of travel and a FOX Float X Performance shock.
Transferring the brutal power of the motor is the wireless electronic SRAM S1000 Eagle Transmission. Mounted directly to the axle without a traditional hanger, this derailleur offers absolute durability and precision even under maximum load on steep climbs. Safety is guaranteed by the latest Magura Gustav Pro 4-piston brakes, featuring extra-thick 203 mm rotors (2.5 mm thickness) that won't overheat on the longest descents. Top-tier Schwalbe radial tires provide ultimate traction.
- Motor
- Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
- Battery
- Avinox Integrated Battery: 800Wh
- Frame
- Amflow PR Carbon Pro Frame, Basalt Grey, 40 adjustable geometry configurations, Compatible with 27.5″ and 29″ rear wheels
- Fork
- FOX Float X Performance (MY 2027), 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
- Shock
- FOX Float X Performance (MY 2027), 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
- Wheelset
- Amflow HMA-30
- Tyres
- Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready, Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
- Gear Shifters
- SRAM AXS Pod Controller
- Brakes
- Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers, Magura Sensor Rotor (203mm, 2.5mm)
- Crankset
- Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) - SRAM Eagle Transmission DM Chainring 38T for Avinox
- Rear Derailleur
- SRAM S1000 Eagle Transmission Derailleur
- Seatpost
- Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) M/L Frame: 190mm XL Frame: 210mm XXL Frame: 230mm
- Chain
- SRAM Eagle 70 Transmission Flattop Chain
- Cassette
- SRAM XS-1270 Eagle Transmission Cassette 10-52T
- Handlebar
- Amflow Enduro Alloy Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
- Hub
- Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt, Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
- Rim
- Alloy, 29″, 30mm inner width, 32H, tubeless ready + Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
- Spokes
- SAPIM E-Light
- Stem
- Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm
- Grips
- Amflow Enduro Grip 2 Lock-on Grips
- Saddle
- Amflow Mountain Saddle
- Charger
- Avinox Fast Charger: 12A/508W
