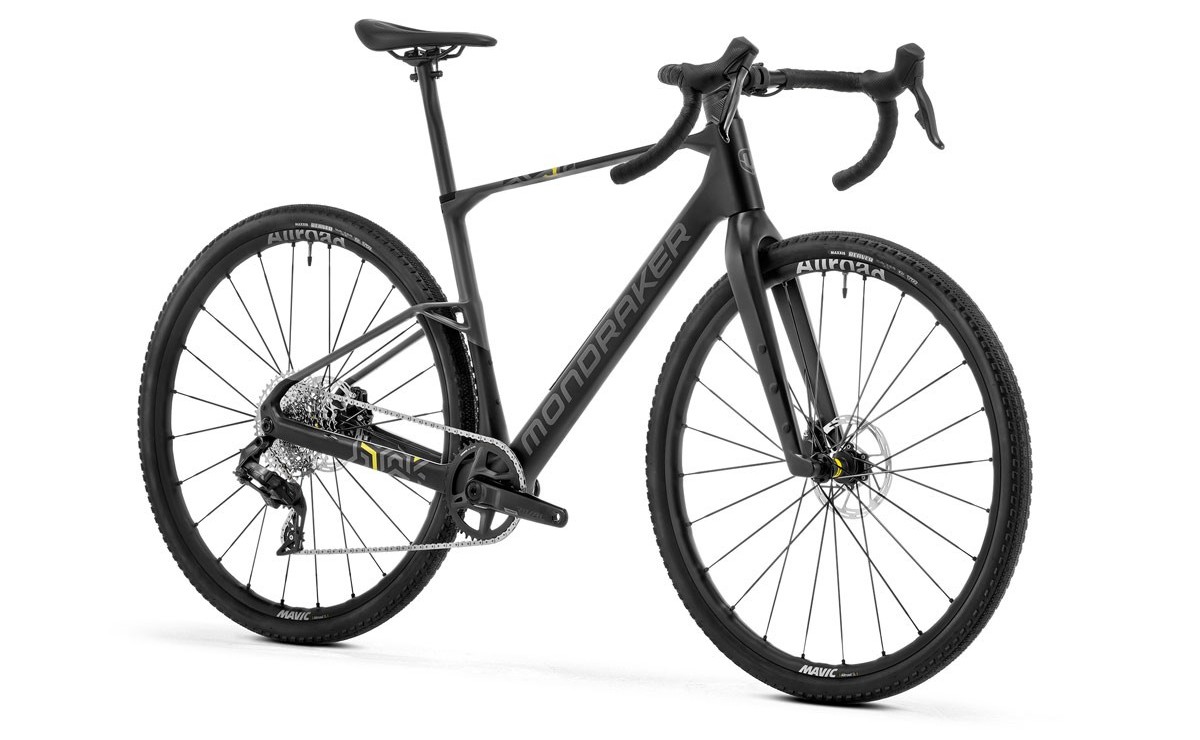

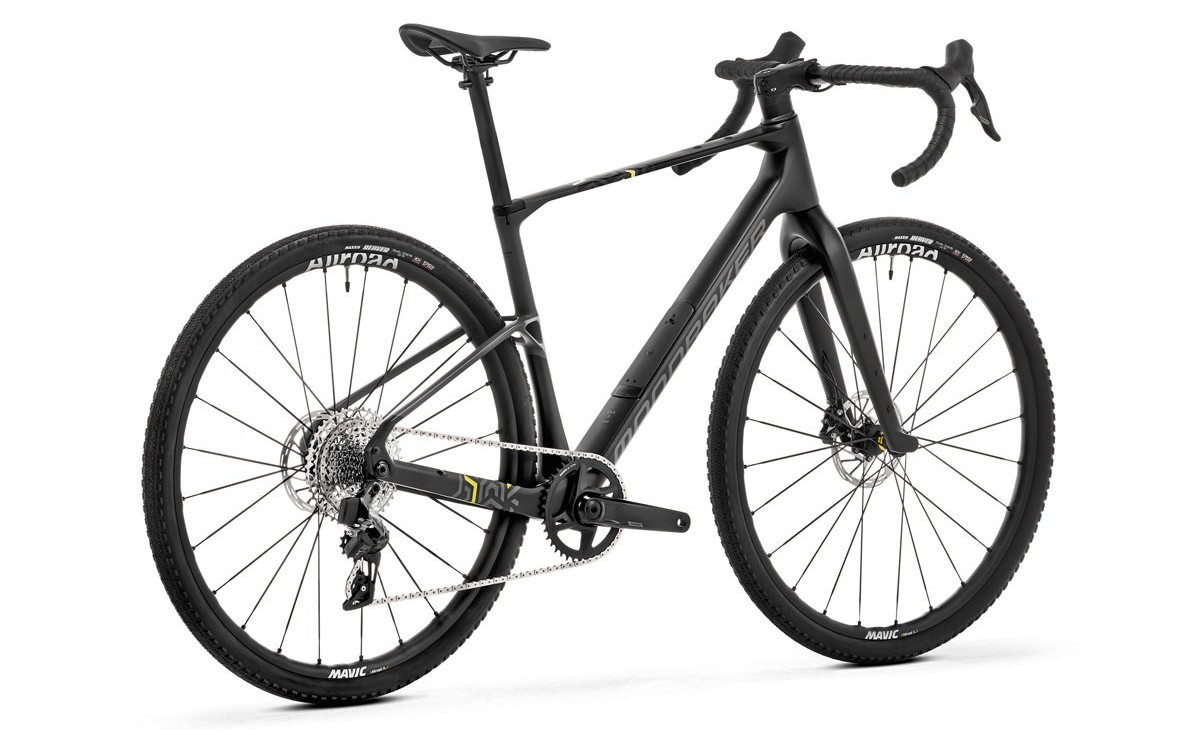

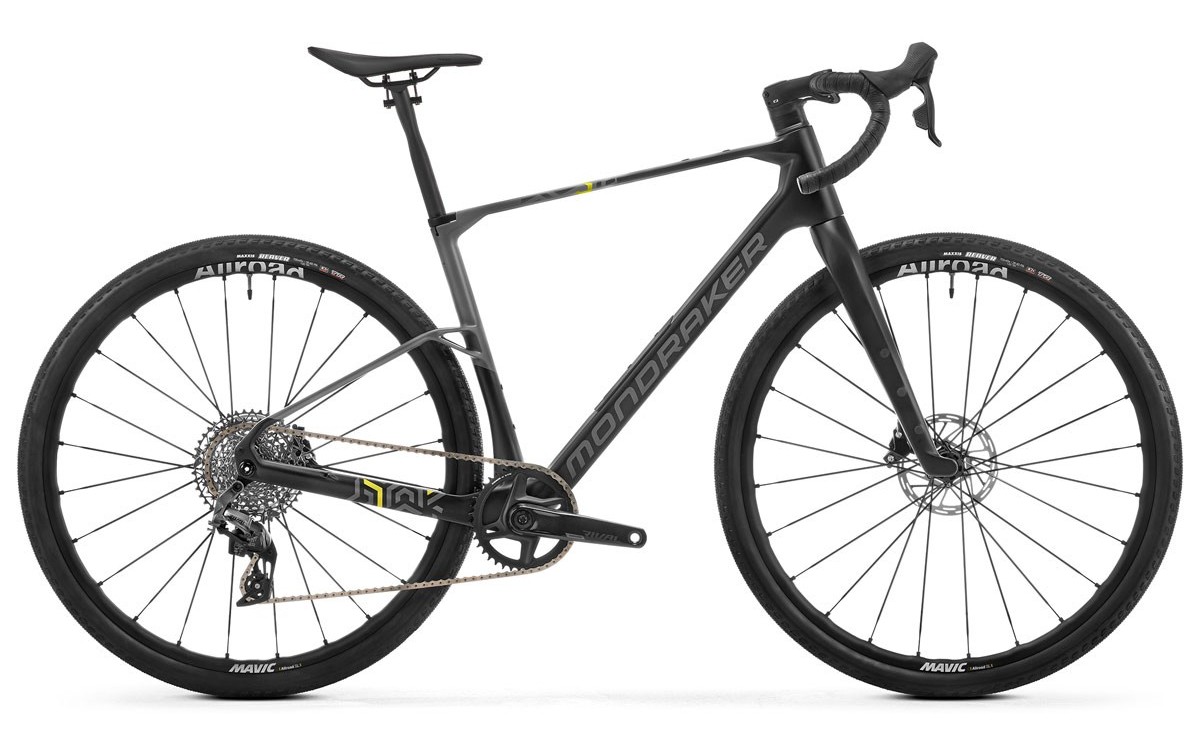

Mondraker Arid R gravel bike
The Mondraker Arid is a carbon gravel bike designed for arid environments, offering a blend of comfort, stiffness, and versatility. It features internal storage, multiple bottle mounts, ONOFF components, and is available in four builds.
Mondraker, a Spanish mountain bike manufacturer, has entered the gravel segment with the Arid, marking its first non-motorized drop-bar bike.
The Arid comes in four build options: ARID Carbon, ARID Carbon R, ARID Carbon RR, and ARID Carbon RR SL, the top-spec and highest-level carbon construction. The RR SL is also available as a frame-only option for riders seeking a custom build.
The bike is constructed using Stealth Air Carbon technology, ensuring a comfortable yet stiff frame. It includes an internal 'Carry-On' storage system in the downtube, allowing riders to carry essentials without additional packs. The Arid also offers multiple bottle mounting points, including traditional mounts within the main frame triangle, under the downtube near the bottom bracket, and up to three alternative mounts on each fork leg.

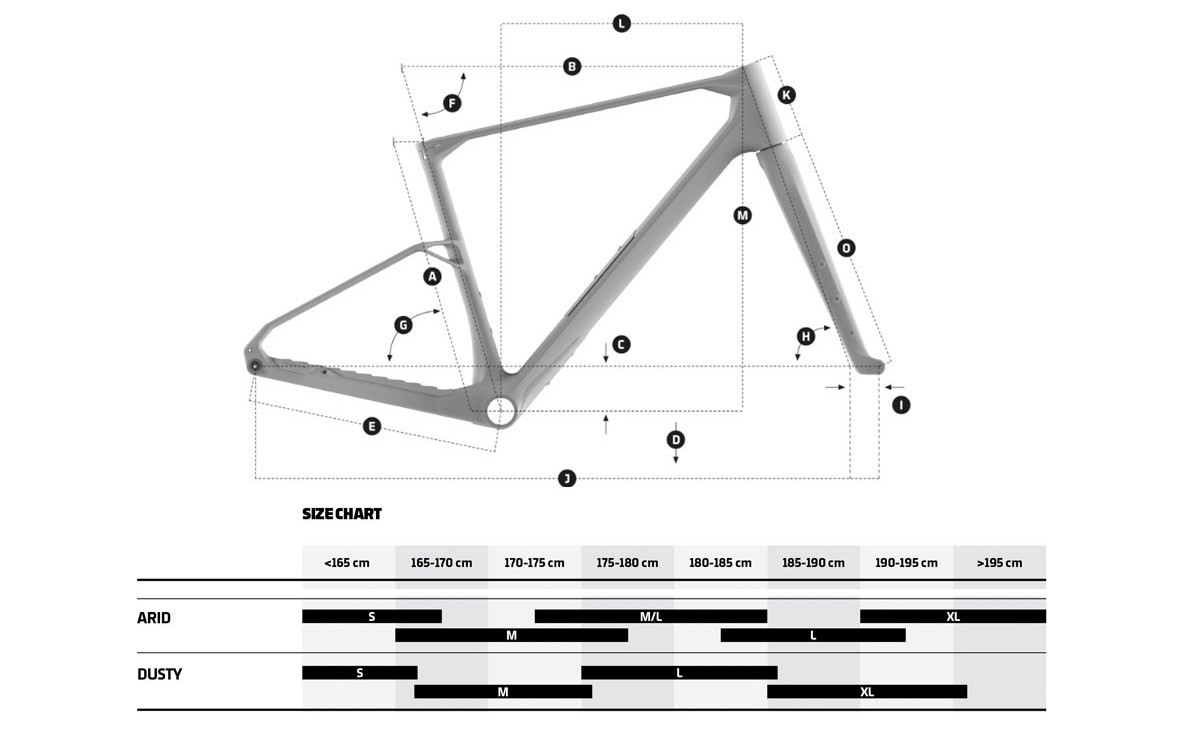

The Arid is available in five sizes: S, M, M/L, L, and XL, accommodating a wide range of riders. It supports up to 50mm wide tires, making it suitable for various terrains.
In summary, the Mondraker Arid is a versatile gravel bike designed for challenging terrains, combining innovative design with practical features to enhance the riding experience.
- Material
- Carbon
- Frame
- Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
- Fork
- Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
- Tyres
- Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
- Gear Shifters
- Sram Rival Etap AXS 12s,
- Brakes
- Sram Rival Etap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
- Crankset
- Sram Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
- Bottom Bracket
- Sram DUB T47 BSA, sealed bearings, 85,5mm
- Rear Derailleur
- Sram Rival XPLR Etap AXS, 12s
- Seatpost
- Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
- Chain
- Sram Rival, 12s, Powerlock
- Cassette
- Sram XG-1251 10-44T, 12s
- Handlebar
- OnOff S9 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
- Weight
- 8.9kg
- Hub
- Mavic, 12x100mm, IS 6 boltsMavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub
- Rim
- Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes
- Spokes
- Mavic Steel double butted flat spokes
- Headset
- Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
- Stem
- Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
- Saddle
- FIZIK Terra Argo X5 140mm
- Front Axle
- 12x100mm
- Rear Axle
- 12x142mm
